Compact satellite antenna with excellent reception performance
The new Selfsat Caravan plus combines minimal space requirements with maximum reception performance. The antenna's special shape allows for high gain despite its small size and low wind load.
Modern Bluetooth control requires only one antenna cable in your vehicle. You can conveniently control your antenna via a smartphone app or with the Bluetooth remote control.
The antenna automatically aligns itself to the Astra 19E satellite after being switched on. However, you can also control the antenna to any other position within the pre-programmed satellites.
-
Low profile: only 14.9 cm
-
Fully automatic alignment

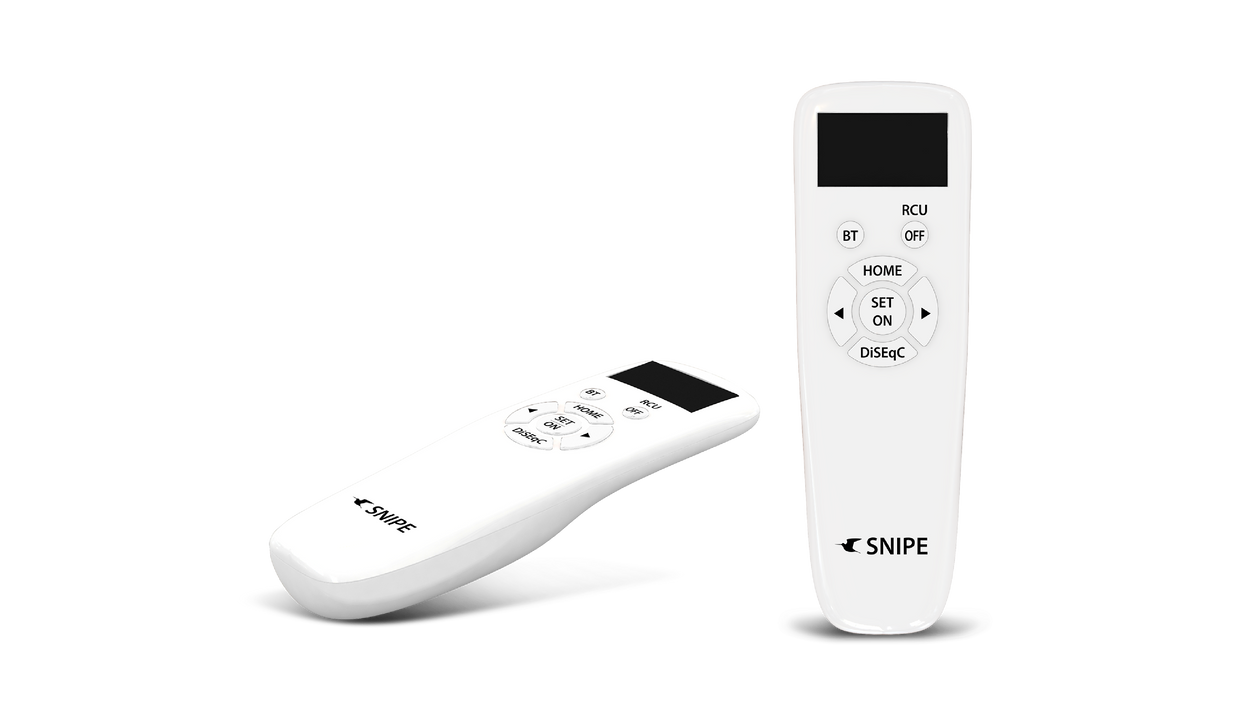

BT remote control (available as an optional accessory):
-
All functions can be controlled with the remote control.
-
Display with status indicator
Mobile App:
-
Support for all operating functions
-
Firmware update
-
Troubleshooting with self-diagnosis
-
Antenna function status indicator
-
iOS or Android
Single cable connection:
-
Easy installation with just one coaxial cable, no additional controller required.
Downloads
Information
Technical data:
-
Connections: 1 (Single)
-
Antenna gain: 35.0dBi @ 12.7GHz
-
Dimensions (W x D x H): 573mm x 508mm x 149mm
-
Weight: 5.5 kg
-
Energy consumption: 11 W (normal operation), 30 W (orientation)
Scope of delivery:
-
Fully automatic satellite antenna Caravan Plus
-
Mounting plate for installation, e.g., on the roof of a motorhome.
-
Cigarette lighter cable
-
Antenna cable (grey) 12m
-
STB cable 1.5m
-
IP Box
-
Cable holder
-
cable gland
-
Fastening screws
-
User manual
Single cable connection
