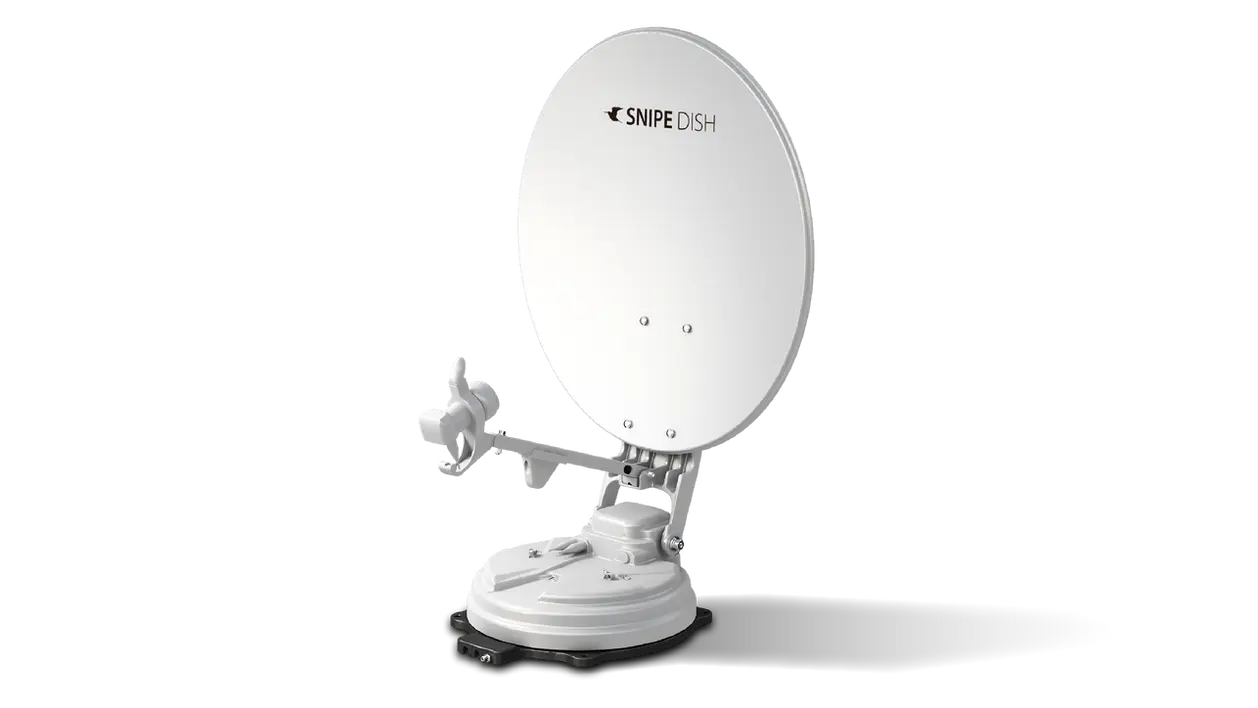

Snipe Dish 2

Fully automatic satellite antennas for fixed installation
Antenna sizes: 65 cm | 85 cm

BT Connect & Auto Skew

The Selfsat Snipe Dish is a true all-rounder. Perfect for both on the go and at home. The foldable antenna demonstrates its full power especially when on the move: Those who venture off the beaten track can still rely on excellent reception, because the Selfsat Snipe Dish performs brilliantly even and especially outside of the core coverage areas.

As soon as the vehicle is started, the antenna automatically moves to the home position. The Selfsat Snipe Dish is available in diameters of 65 and 85 centimeters.

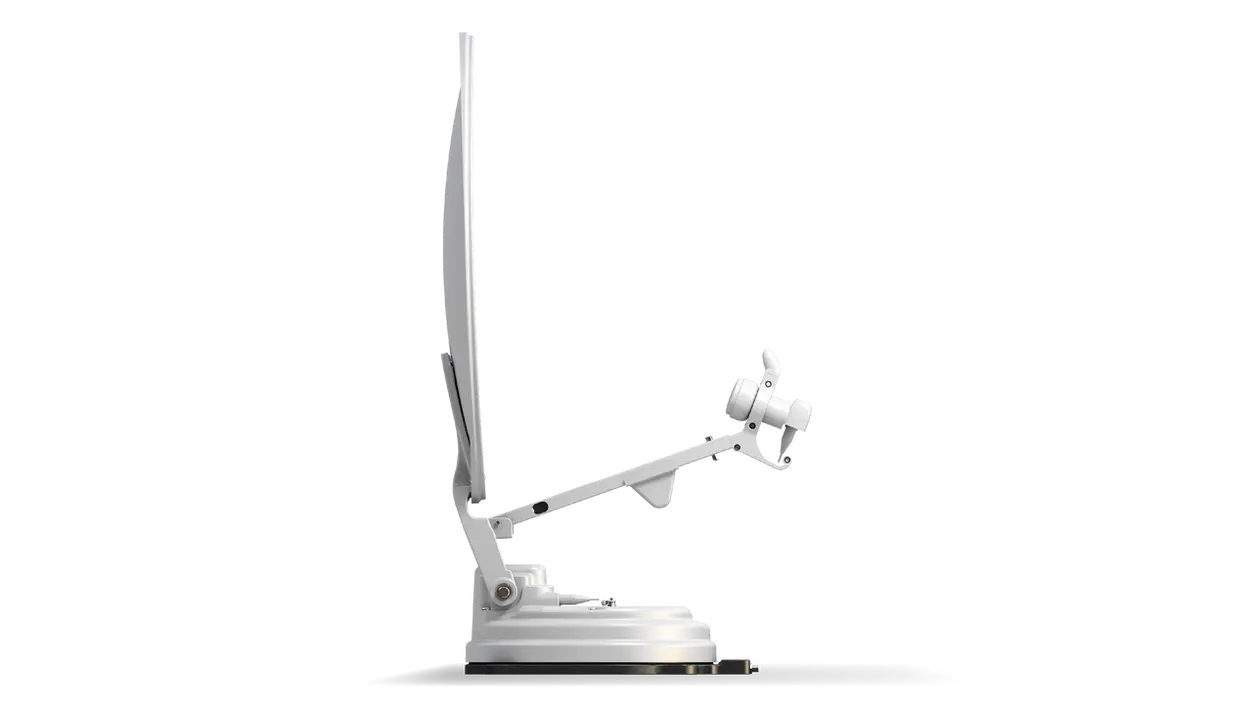

The antenna can be completely folded away when not in use or when driving in a motorhome. The large reflector allows reception of all common European satellites in excellent quality.

Satellite selection is done on the control panel and takes only seconds. There's no need for tedious unpacking, setup, or configuration. You'll need a suitable TV or satellite receiver for satellite reception.

Thanks to the autoskew function, even satellites that would otherwise be difficult to receive can be received anywhere in Europe.

Additional features:

  • Control unit can be updated via USB or smartphone APP

  • Very stable construction

  • Weatherproof

  • high bad weather reserve

  • low height in parking position (only 18.4 cm)

  • Compatible for SD, HD and UHD reception

  • fast and precise alignment

  • Suitable for stationary reception as a sky tracker

  • Mobile use on motorhomes, caravans, buses or trucks

Snipe Dish 2 | 65 cm

Mirror panel dimensions

66.0 x 71.0 cm



folded

88.5 x 66.0 x 18.4 cm



Weight

12.0 kg

SNIPE Dish_85.png

Snipe Dish 2 | 85 cm

Mirror panel dimensions

86.0 x 91.0 cm



folded

110.6 x 86.0 x 18.4 cm



Weight

13.8 kg

Variants

info

Technical data:

  • Input frequency: 10.7 ~ 12.75 GHz

  • Polarization: Vertical & horizontal

  • Min EIRP: 46 dBW

  • Rotation range (EL/AZ): 0° ~ 145° / 390°

  • Skew range: Manual

  • Satellite search time: 180 seconds (typical)

  • Output: 1 output

  • LNB output frequency: 950 ~ 2,150 MHz

  • LO Frequency: 9.75 / 10.6 GHz

  • Operating temperature: -20°C ~ +60°C

  • Power supply: DC 12V

  • Power consumption: 50 W (during search)

Scope of delivery:

  • Selfsat Snipe Dish

  • Controller

  • Signal cable (7 meters)

  • Controller / power supply cable (Note: Loose cables, self-assembling in the power grid)

  • Mounting kit consisting of: mounting plate, STB cable (3 meters), cable entry and screws

  • LNB protective plate

  • Operating instructions
