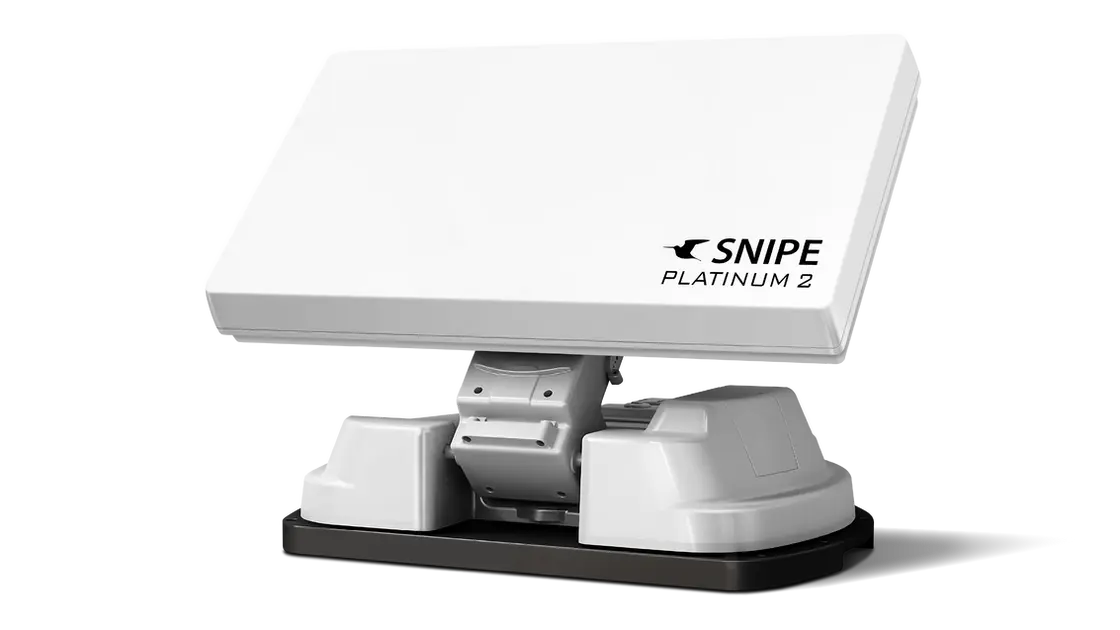

SNIPE PLATINUM 2
With BT remote control and iOS / Android control as well as GPS module
The Latest Generation
The premium class of the Snipe antenna family offers weather-stable reception anywhere in Europe thanks to its larger reception area. The Selfsat Snipe Platinum 2 allows reception even under difficult conditions and on the edge of the reception area.
Up to 10 dB more power than the previous models.
Automatically controllable flat antenna with BT remote control.
iOS & Android app for control, firmware and updates. Only 1 antenna cable required for easy installation without a controller.
With the Selfsat SNIPE Platinum 2, we present the latest generation of SNIPE antennas including BT remote control and a comprehensive app for operating the antenna, firmware updates, device monitoring and easy finding of the target satellite via GPS.
10 satellites pre-programmed
Conveniently align your antenna to different positions without having to walk to the controller.
The housing design has been optimized and the low-band performance has been improved.
-

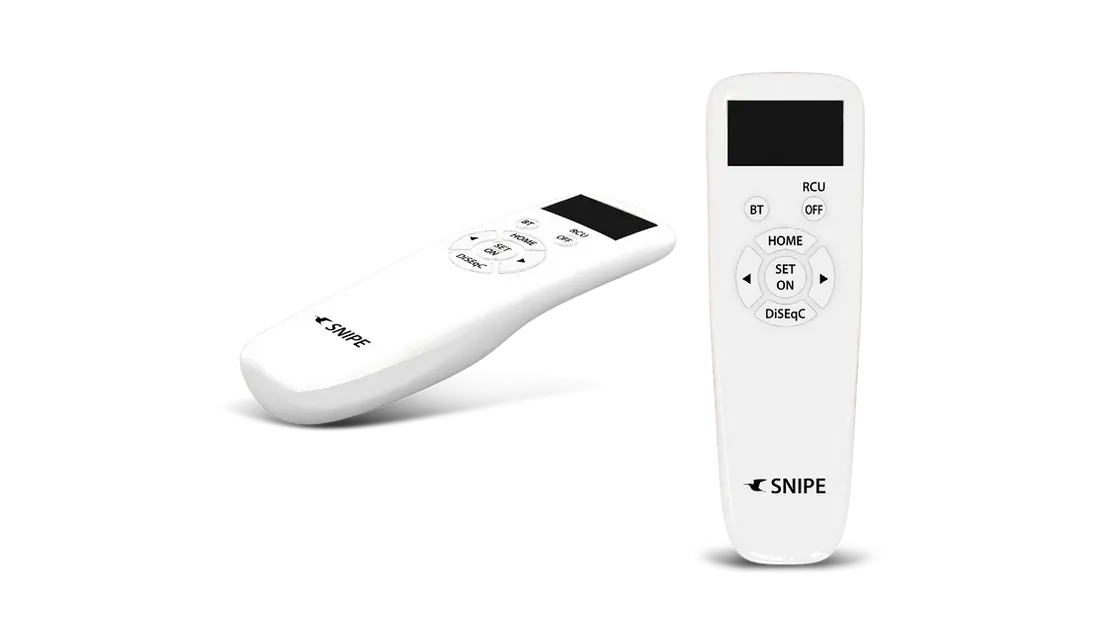

BT remote control with new OLED screen to check the antenna status:
-
Full operation using new BT remote control
-
OLED screen to check the antenna status
New design:
-
Better reception thanks to optimized antenna design
-
Improved low-band performance
Easy installation:
-

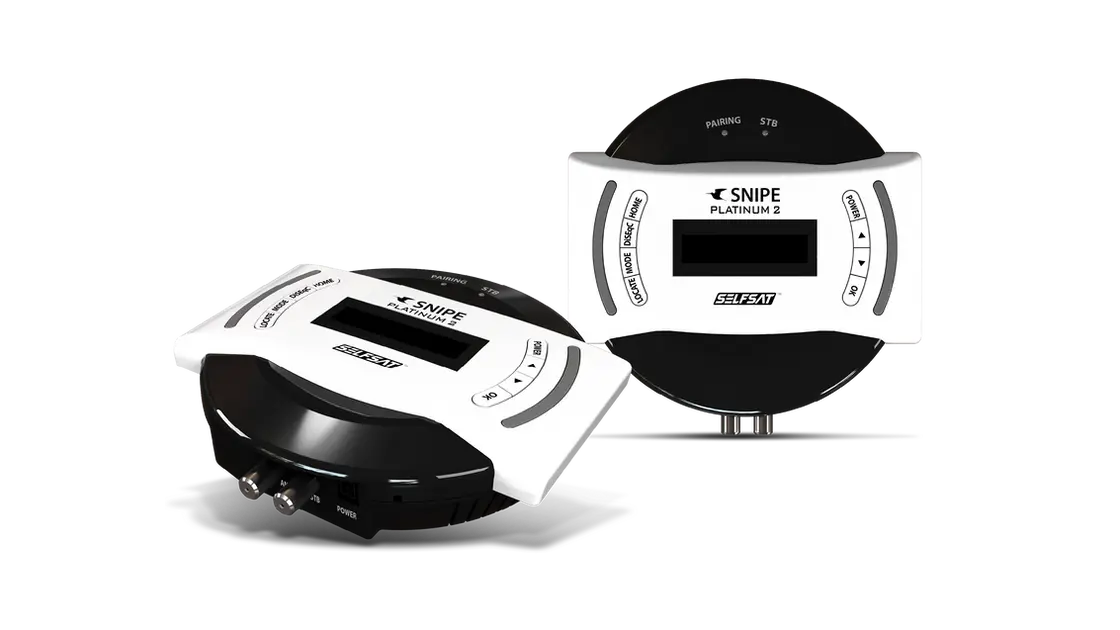

One antenna cable for easy installation Controller with LCD display and Bluetooth function
Particularly durable:
-
Ultra waterproof and drainage system
-
Light and rust-proof thanks to reinforced plastic
-
Built-in high-voltage protection circuit to protect the system
Mobile app:
-
Antenna functions for Android or iOS that can be controlled via app
-
Firmware upgrade
-
Fault self-diagnosis
-
Monitoring of the antenna status
-
Easy-to-find satellite positions (GPS)
-
Your Selfsat antenna should a loyal companion for many years. Hence our promise to plan the service for the long term. In the interest of the environment and sustainability, we ensure that no Selfsat antenna ends up in the scrap heap. We keep spare parts for all models and carry out repairs in our Selfsat Service Center in Vohenstrauß, Bavaria.
Downloads
Info
Technical data:
Up to 10 pre-programmed satellites
Built-in high-voltage protection circuit
Support for mobile phone application (BT)
Easy to find target satellite (GPS support)
Antenna dimensions (WxHxD) 560 × 360 × 215 mm
Dimensions remote control (WxHxD) 140 x 50 x 18 mm
Angle range 15° ~ 90° / 360° / -45° ~ +45°
Weight 10.6 kg
Satellite change via DiSEqC 1.0 / 1.1
Satellite search time 180 seconds (on average)
LNB Output 1 Output
Input frequency 10.7 ~ 12.75 GHz
Output frequency 950 ~ 2,150 MHz
LNB LO frequency 9.75 / 10.6 GHz
Operating temperature -30°C ~ +60°C
input voltage DC 12V
Power consumption 30W (in search mode)
Scope of delivery:
Fully automatic satellite antenna SNIPE Platinum 2 with Single LNB
BT remote control with OLED screen
Controller with LCD display and Bluetooth function
Mounting plate for mounting e.g. on the roof of a motorhome
cigarette lighter cable
antenna cable (gray) 7m
STB cable 1.5m
base cushion
cable holder
cable gland
Allen key
fastening screws
operating instructions
