SNIPE 3 Black Line
Fully automatic satellite antenna
New version, even better and more durable

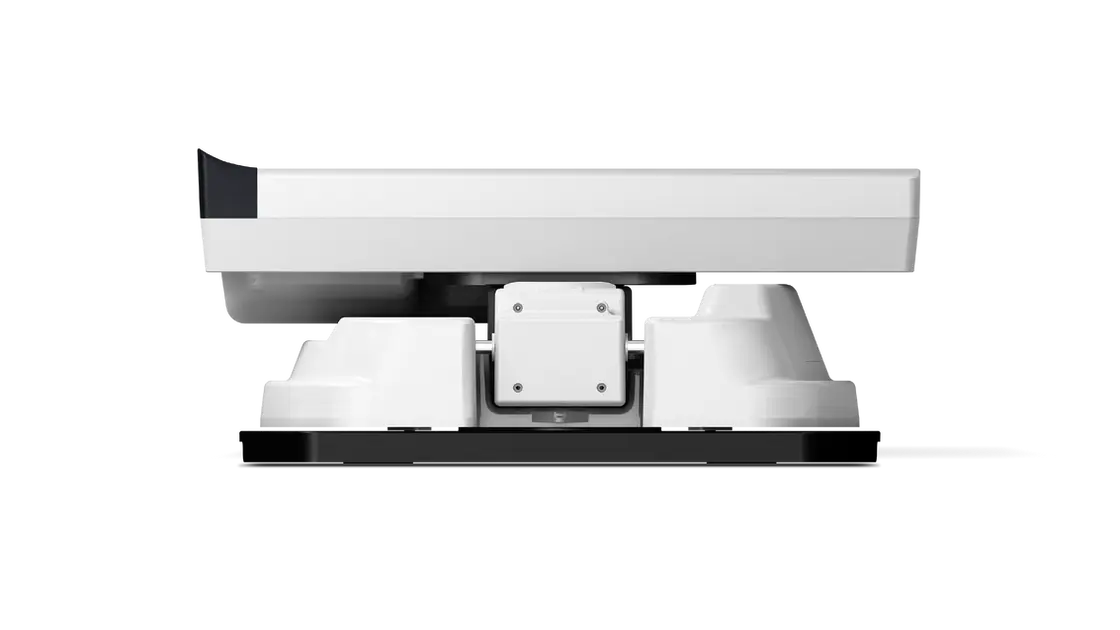

The fully automatic SELFSAT SNIPE 3 satellite antenna offers unobtrusive installation thanks to its elegant all-white design. Thanks to its compact design, the SNIPE 3 antenna takes up minimal space – ideal for mounting on the roof of a motorhome. The hassle of re-aligning it to a new location is also eliminated. Thanks to the integrated GPS module and electronically controlled drive, the antenna automatically aligns itself at the touch of a button. You can receive your favorite programs even while traveling, provided the satellite is accessible.
The SNIPE 3 retracts automatically as soon as you turn off the receiver or start the vehicle.
Despite its compact dimensions, the Selfsat SNIPE 3 offers excellent reception. The three-layer antenna design with waveguide horn array largely prevents diffuse reflection of the satellite signal. Horizontally and vertically polarized signals are separated and bundled and directed to the LNB. The result: a high signal strength at the LNB.
Receive your desired program on the go: automatic alignment to the desired satellite at the touch of a button
No more laborious antenna alignment
10 pre-programmed satellites (Turksat, Astra 2, Astra 3, Astra 1, Hotbird, Eutelsat 9, Astra 4, Thor, Eutelsat 5W, Hispasat). In addition to the pre-programmed satellites, two additional satellites can be added.

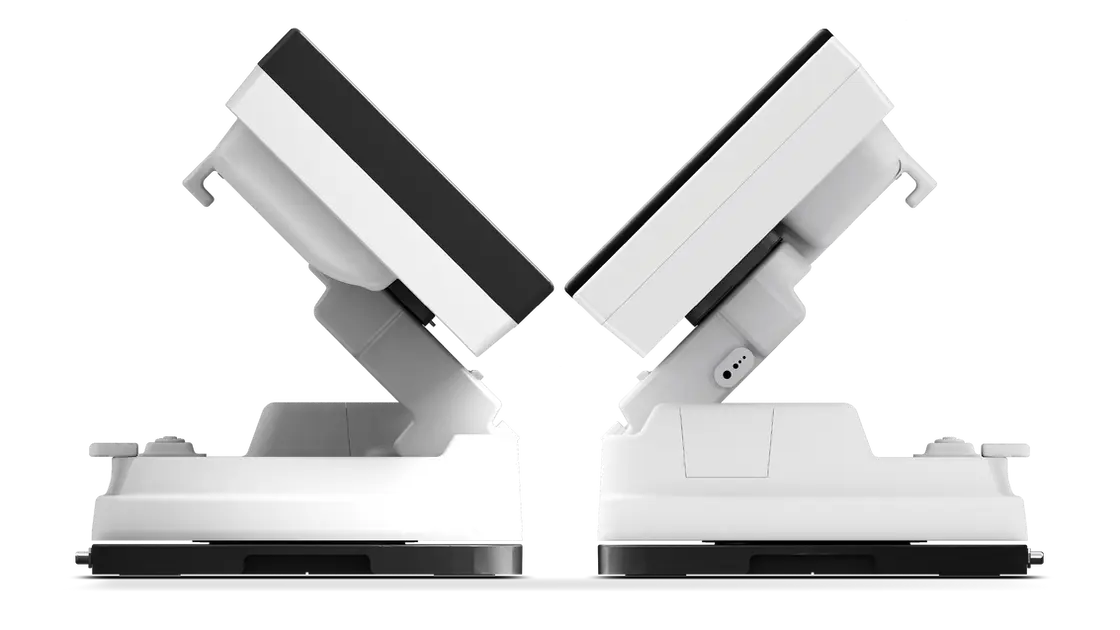

Automatic adjustment of elevation, azimuth and skew by antenna drive
Reception performance comparable to a conventional 60cm dish
Very practical for motorhomes: ultra-flat construction
Suitable for mobile use as well as for fixed roof mounting
Suitable for continuous use
Waterproof construction with drainage system
World's smallest and most powerful automatic satellite antenna
With Twin LNB for 2 participants (receiver/TV)
New antenna with new design:
The new design ensures even better reception
Improved durability:
Ultra waterproof and with drainage system
Lightweight and rust-proof thanks to reinforced plastic material
Built-in high-voltage protection circuit to prevent short circuits on the LNB
Advanced technology:
Support for DiSEqC 1.0 / 1.1
Auto satellite switch with TV channel control
Move to HOME position by switching off the receiver/TV
New additional functions:
Up to 12 preset satellites
Optimal tilt adjustment and fast search with GPS
Automatically retracts to the HOME position when the vehicle starts
Solid mechanics:
Precise alignment with die-cast aluminum gear housing
A firm lock protects the antenna from shocks while driving
The longevity of the gearbox has been greatly improved by the use of die-cast aluminum

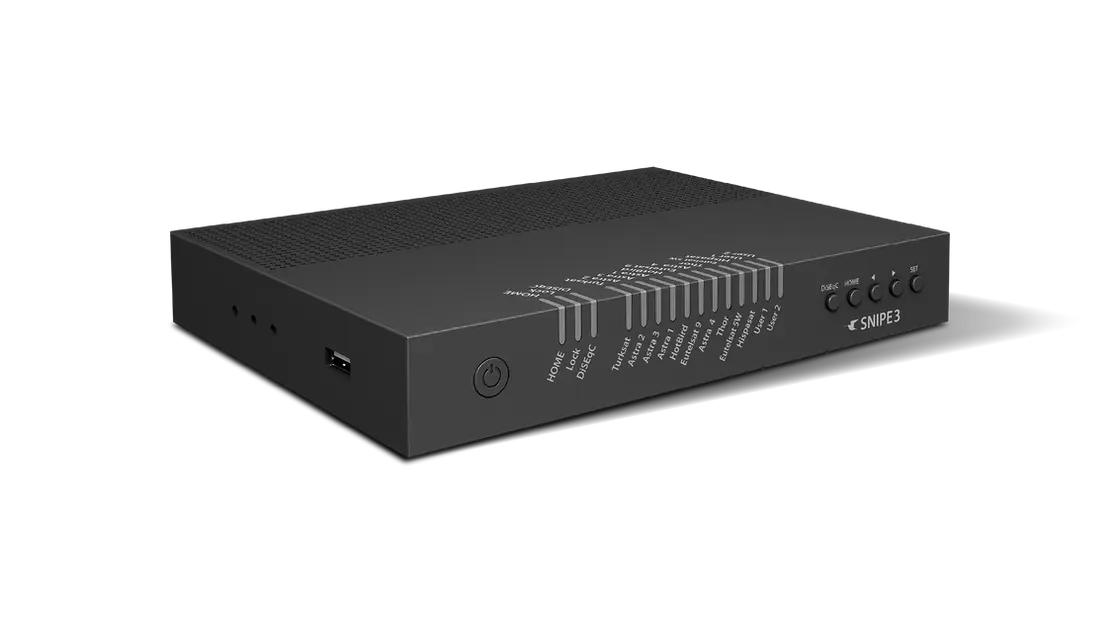

New controller:
Smart TP Management with storage of 12 transponders (TPs)
Automatic removal of outdated TP and automatic update of new TP
The main control buttons directly on the controller provide easy operation and maintenance of the device
Easy upgrade procedure via USB
New construction:
No mechanical damage when lifting the antenna. An improved home position including a locking system ensures a firm and secure hold while driving.
New engine:
The new powerful motor, reinforced with an 18:1 gear ratio, offers high torque and ensures less noise during alignment.
info
Technical data:
LNB input frequency: 10.7~12.75 GHz
Polarization: Vertical & Horizontal
Gain: 33.7 dBi at 12.7 GHz
Dimensions (W x D x H): 515 x 355 x 201 mm
Weight: 10.3 kg (without case, mounting plate and accessories)
Min. EIRP: 50 dBw
Elevation: automatic, 15-90°
Azimuth: automatic, 360°
Skew: automatic, -45° to +45°
DiseqC: 1.0 / 1.1
Satellite search time: max. 180s
LNB output: 2
LNB output frequency: 950~2,150 MHz
LNB LO Frequency: 9.75 / 10.6 GHz
Operating temperature: -30 to +60 °C
Supply voltage: 12V DC
Power consumption: 30W (during satellite search)
Scope of delivery:
Selfsat Snipe 3
control unit
bracket
mounting plate
12 volt vehicle connection cable
Control cable 7m
Coaxial cable 7m
Coaxial cable 1m
Base pads
plastic case
Allen key
Roof penetration
cable gland
Screw sets
Operating instructions
