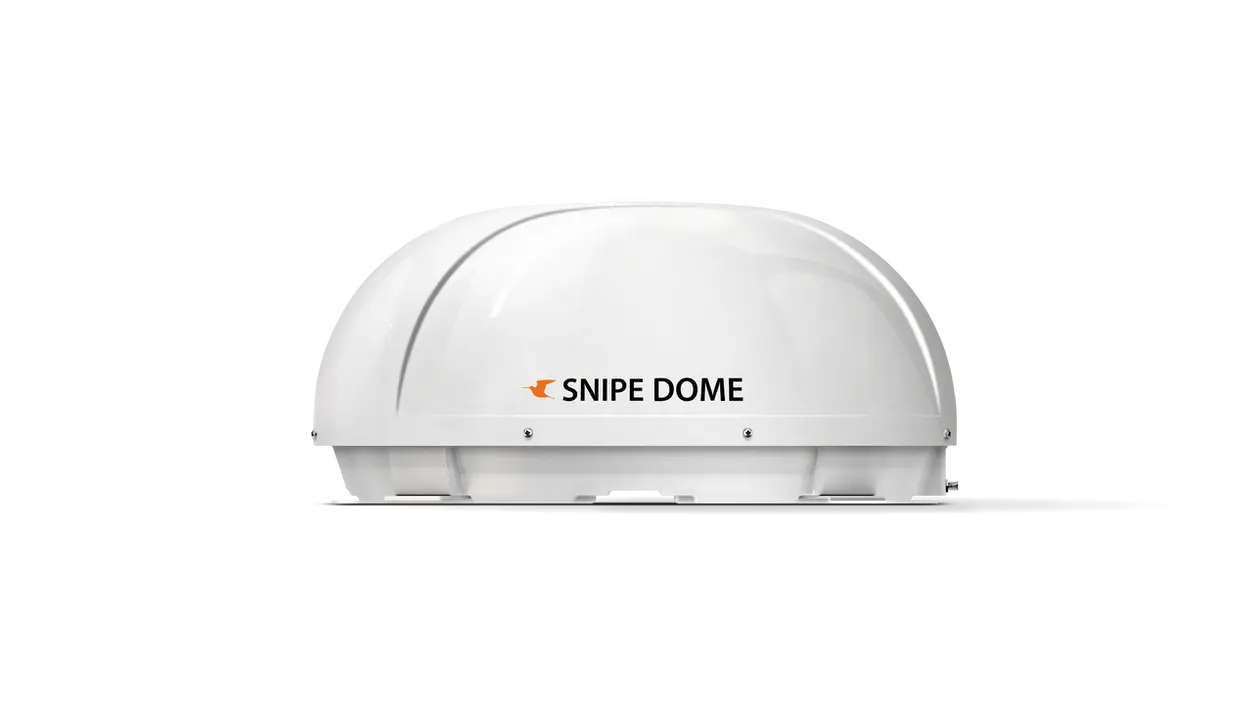

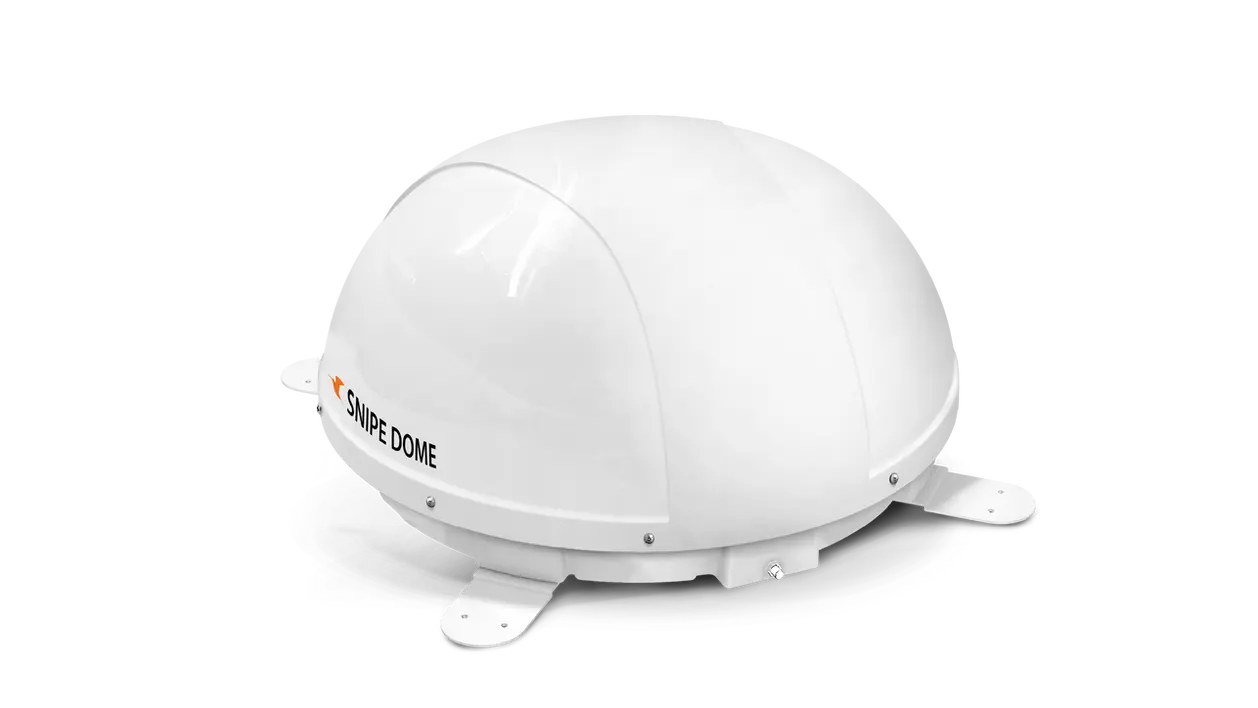

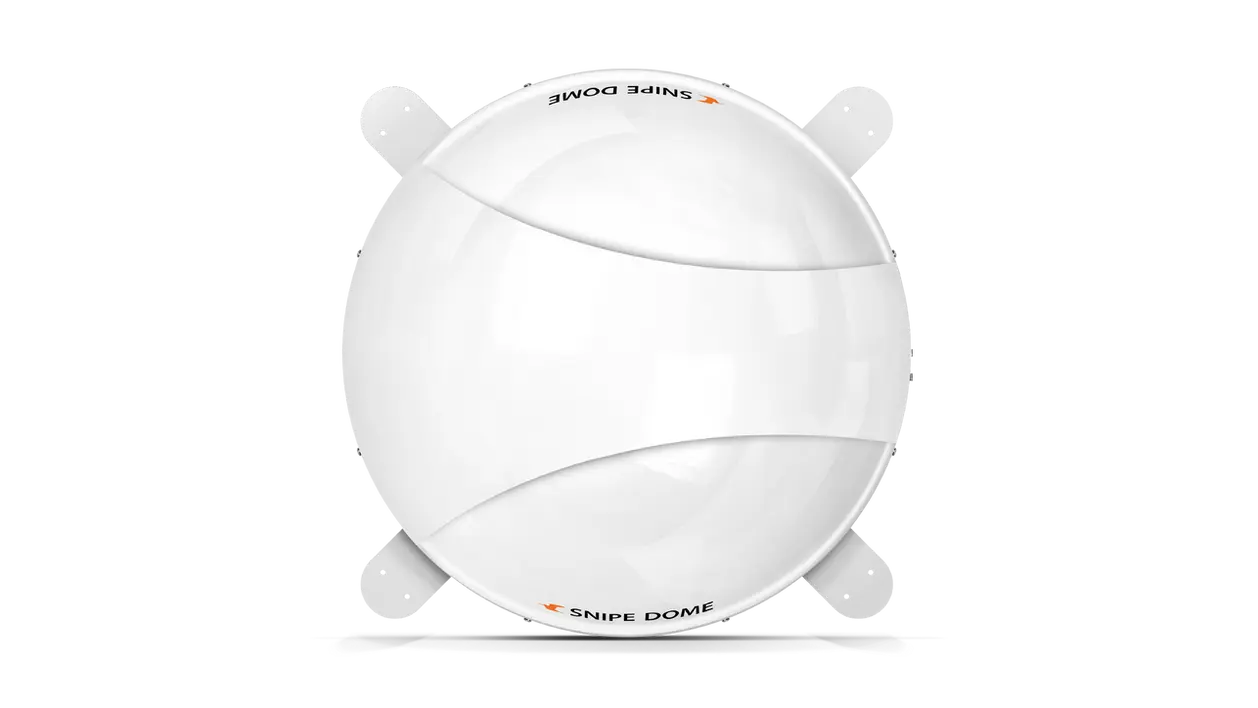

Snipe Dome

Satellite system with automatic positioner under a noble plastic cover

The weatherproof fully automatic satellite antenna

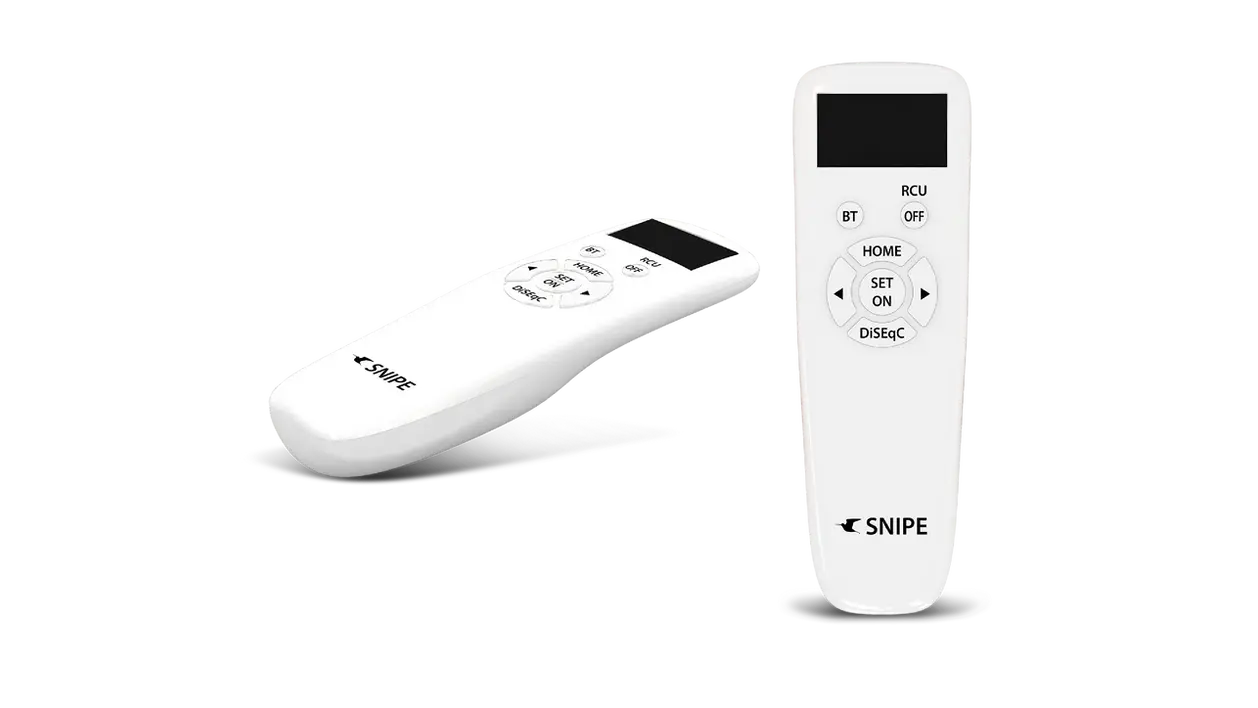

Control and maintenance are carried out wirelessly via the remote control or smartphone app. Only an antenna cable is required for installation.

Satellite system with automatic positioner under a noble plastic cover

At the touch of a button on the remote control, the antenna automatically finds the selected satellite within 1-2 minutes, enabling reception even in parked caravans or motorhomes. Unlike standard systems, the Selfsat Dome features a flat antenna as the receiving unit. This innovative technology allows for a compact antenna design while maintaining consistent reception characteristics. The antenna is optimally protected against external damage by an elegant plastic cover. This eliminates the need for tedious setup and dismantling at the location. The included positioner operates independently and can be used with any satellite receiver.

Integrated GPS receiver

The Selfsat Snipe Dome has an integrated GPS receiver to determine the location more quickly when searching for satellites.

Reception of all German television and radio programs is possible in the most important holiday countries in Europe.

Just press the button and watch TV

The antenna is pre-programmed for a total of 8 satellites. After switching it on, you simply press a button on the remote control to receive satellite TV fully automatically.

Your Selfsat antenna should be a faithful companion for many years. Therefore, we promise to plan service for the long term. In the interest of the environment and sustainability, we ensure that no Selfsat antenna ends up in the scrap heap. We stock spare parts for all models and carry out repairs at our Selfsat Service Center in Vohenstrauß, Bavaria.

Characteristics:

  • Antenna type: flat antenna

  • Mirror size: 480 x 240 mm

  • Number of participants: 1

  • LNB Type: Universal LNB

  • Frequency band: Ku band

  • Frequency range: 10.7 GHz to 12.75 GHz

  • Antenna gain: 33.7 dBi

  • Reception power: 50 dBW

  • Polarization: H / V

  • Motor control: 2-axis DC motor

  • Tilt angle: 15° ~ 75°

  • Search angle: 360°

  • Alignment time: 1-2 min.

  • Temperature range: -30° C to +60° C

info

Pre-programmed satellites:

  • Astra 1 (19.2° East)

  • Astra 2 (28.2° East)

  • Astra 3 (23.5° East)

  • Astra 4 (4.8° East)

  • Hotbird (13° East)

  • Thor (0.8° West)

  • Eutelsat 5 West A (5° West)

  • Eutelsat 9A (9° East)

Power supply:

  • 12 V ~ 24 V

Product:

  • Width: 685 mm

  • Depth: 800 mm

  • Height: 310 mm

  • Weight: 8.0 kg (net)

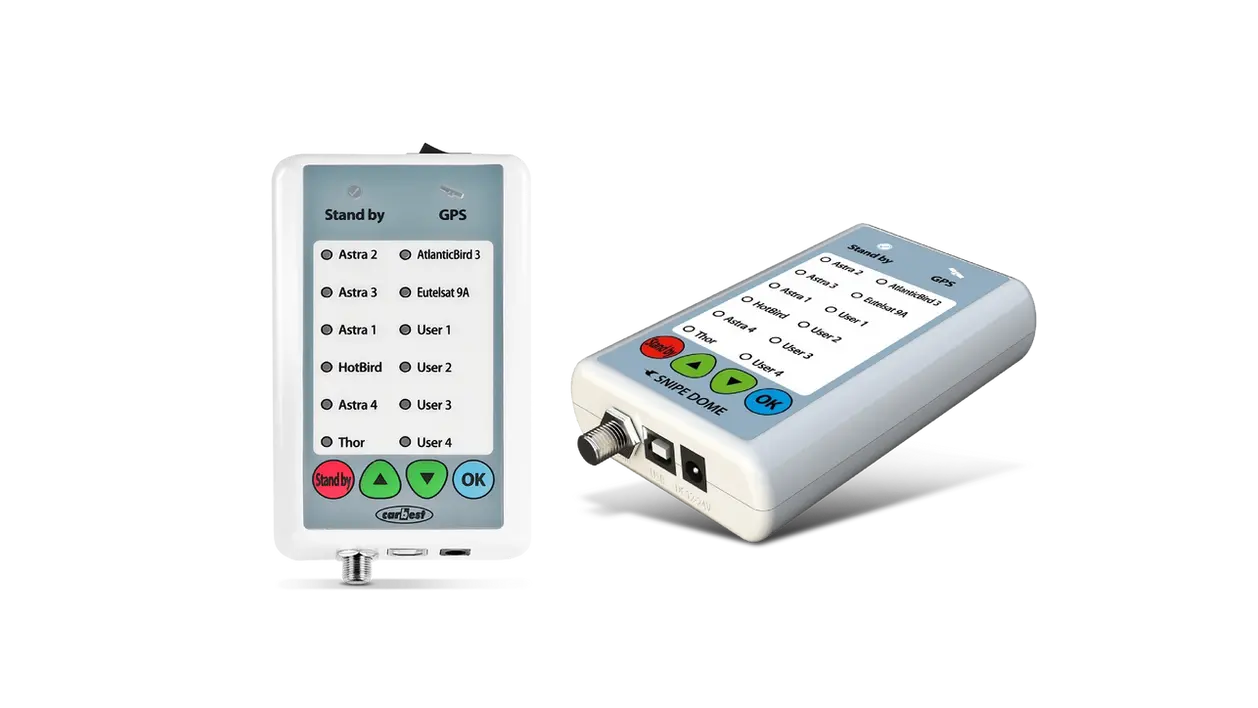

Control unit:

  • Width: 77 mm

  • Height: 126 mm

  • Depth: 30 mm

  • Weight: 133 g

Scope of delivery:

  • Selfsat SNIPE Dome

  • control unit

  • Wall mount

  • 1.5m coaxial cable (for receiver)

  • 7m coaxial cable (for control unit)

  • 12 V vehicle connection cable

  • screw set

  • Roof penetration

  • cable gland

  • Operating instructions
