Unicable Antennas

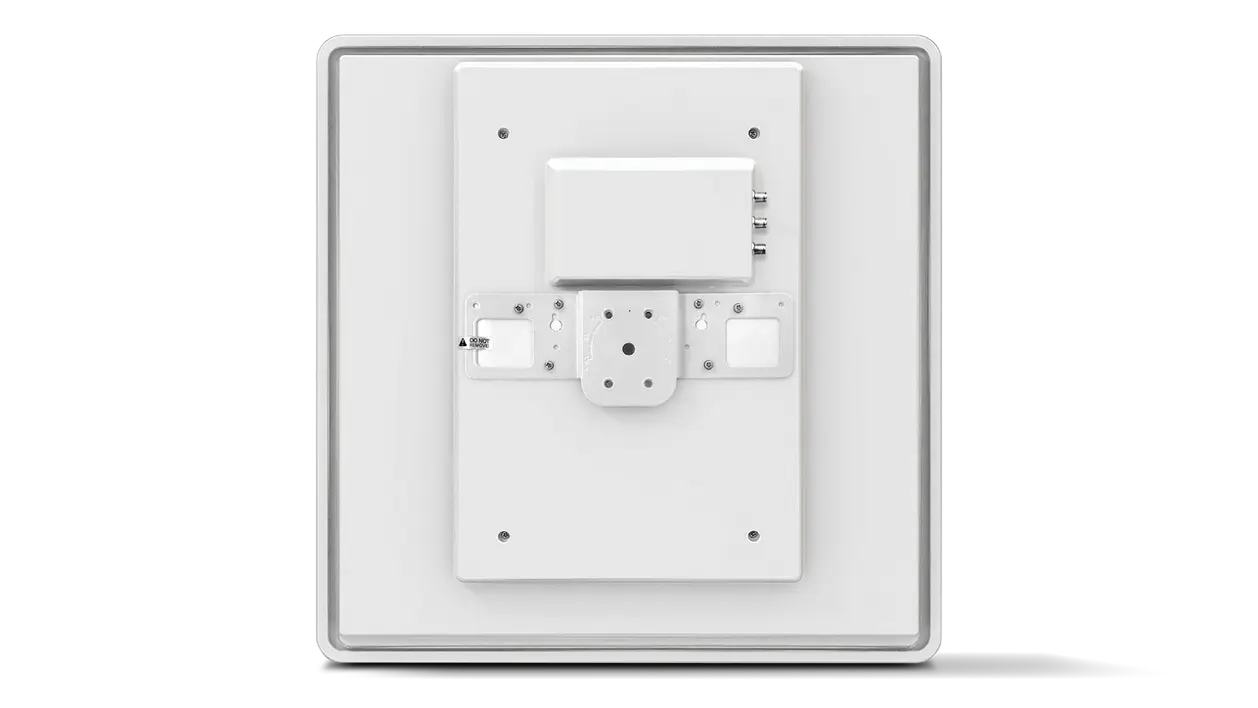

H50 SCR | H22 SCR+ | H22 dCSS+
The modern distribution of a satellite signal
The antennas in the Unicable series are Selfsat's most modern flat antennas. With Unicable or dCSS technology, switching via a switching voltage (14/18V) is not required. This allows 24 satellite signals to be transmitted over a single antenna cable. You can use satellite splitters within your home to distribute the signal.
These antennas are ideal if you want to operate modern receivers with twin or FBC tuners. Additionally, one or two conventional satellite connections on the antenna offer the option of connecting devices that do not yet have Unicable technology.
Note on alignment
When using a satellite meter, the antenna behaves like a conventional satellite dish (single LNB). No special measuring device is required to align the antenna.
Variants
Downloads
Information
Technical specifications SatCR output:
-
Output SatCR channels: 1210, 1420, 1680, 2040 MHz
-
Conversion gain outside the AGC: 60dB (min.)
-
Gain variation: 7.5dB P -P (Max.)
-
IF AGC output setpoint in CW mode: -32~-17dBm
-
Control signal: CENELEC EN-50494
Technical specifications Legacy output:
-
Output IF (Legacy): 950-2150 MHz
-
Conversion gain outside the AGC: 55dB (min.)
-
Gain variation: 7.5dB P -P (Max.)
-
IF AGC output setpoint in CW mode: -16~25dBm
-
Control signal:
-
Polarization switching: DiSEqC signal 10.5~14V (vertical) / 16~21V (horizontal)
-
Band switching: Low Band: 0kHz / High Band: 22kHz ±4kHz
Scope of delivery:
-

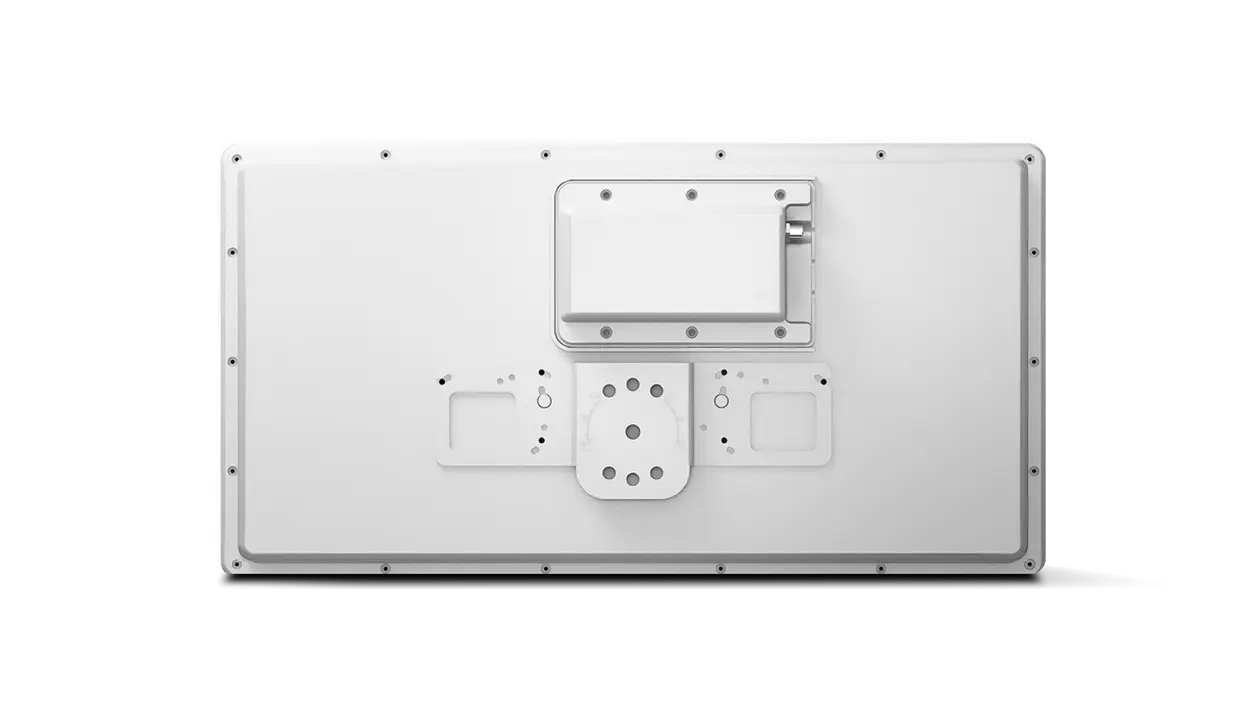

SELFSAT H50SCR Unicable satellite antenna
-
Unicable LNB for up to 6 users
-
2x Legacy output
-
Mast bracket with mounting clamp
-
wall mount
-
Assembly instructions
-
Screw set
-
Tool
