H50 SERIES

H50D and D+ flat antenna

The high-performance antenna

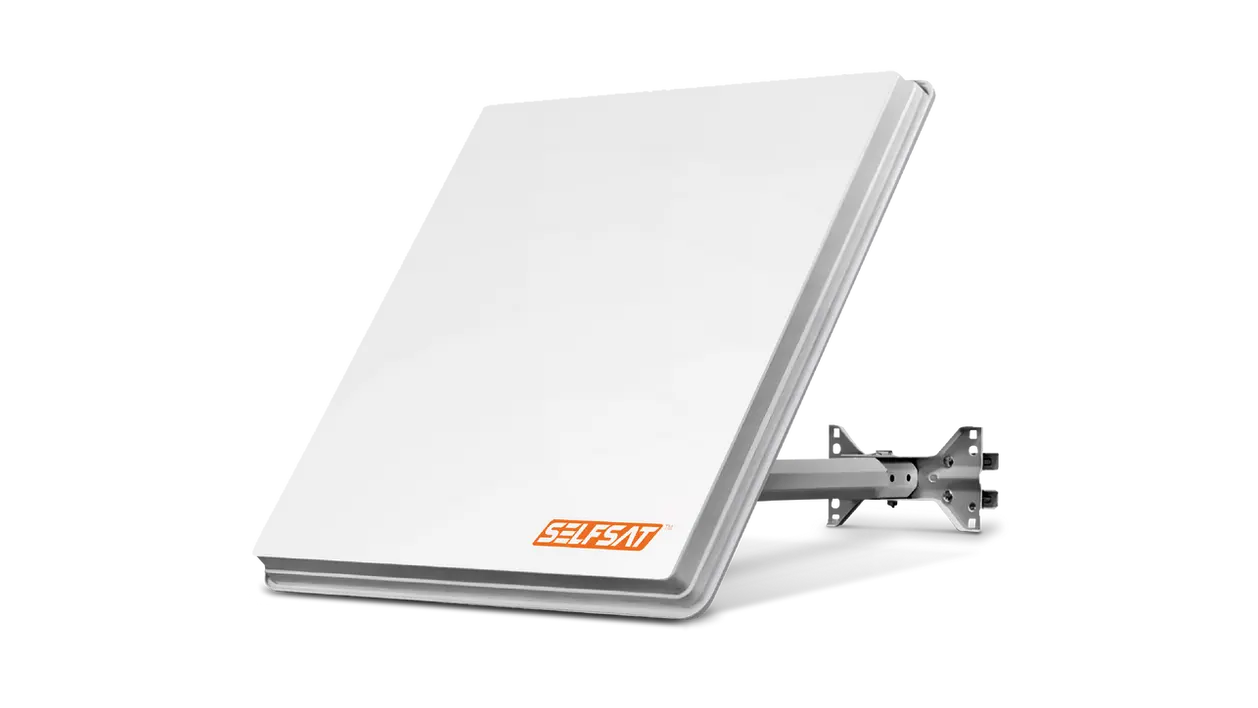

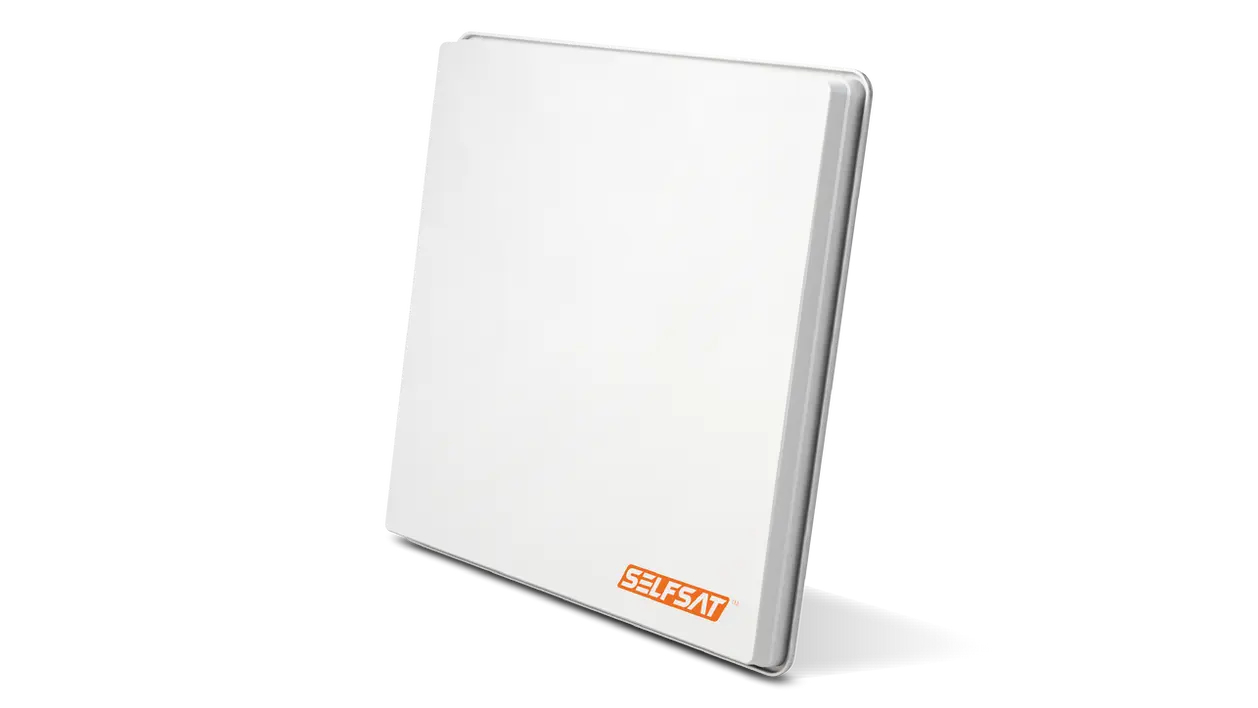

An elegant solution for any home. The H 50D integrates perfectly into any house design. Selfsat H50D1 – the discreet satellite dish for all satellites such as Astra 19.2° East, Eutelsat 16° East, Sirius, etc. With an antenna gain of 36.1 dBi at 12.7 GHz, this antenna is comparable to an 80 cm offset dish.



The Selfsat H50D has up to [number] connections for tuners, receivers or TV devices.



  • Suitable for 1 receiver

  • flat design

  • Antenna gain: 36.1 dBi at 12.7 GHz



The Selfsat H50D2 has a connection for 1 tuner, receiver or e.g. TV set.



The reception performance of this flat antenna is equivalent to that of a high-quality 80cm dish. Astra, Eutelsat, etc. can be received without any problems.

Variants

Downloads

information

Technical data:



  • 1 connection (single antenna)

  • Flat and unobtrusive case

  • Can be installed anywhere

  • Relatively small dimensions

  • Dual linear polarization (vertical & horizontal)

  • All mounting hardware included

  • Easy assembly

  • Dimensions: 543x555x68mm

  • Weight: 6.5 kg



Scope of delivery:



  • Selfsat H50 D

  • Integrated single LNB

  • compass

  • Mast bracket with mounting clamp

  • wall mount

  • Window bracket

  • base

  • Assembly instructions

  • Screw set

  • Tool

  • Styrofoam packaging
