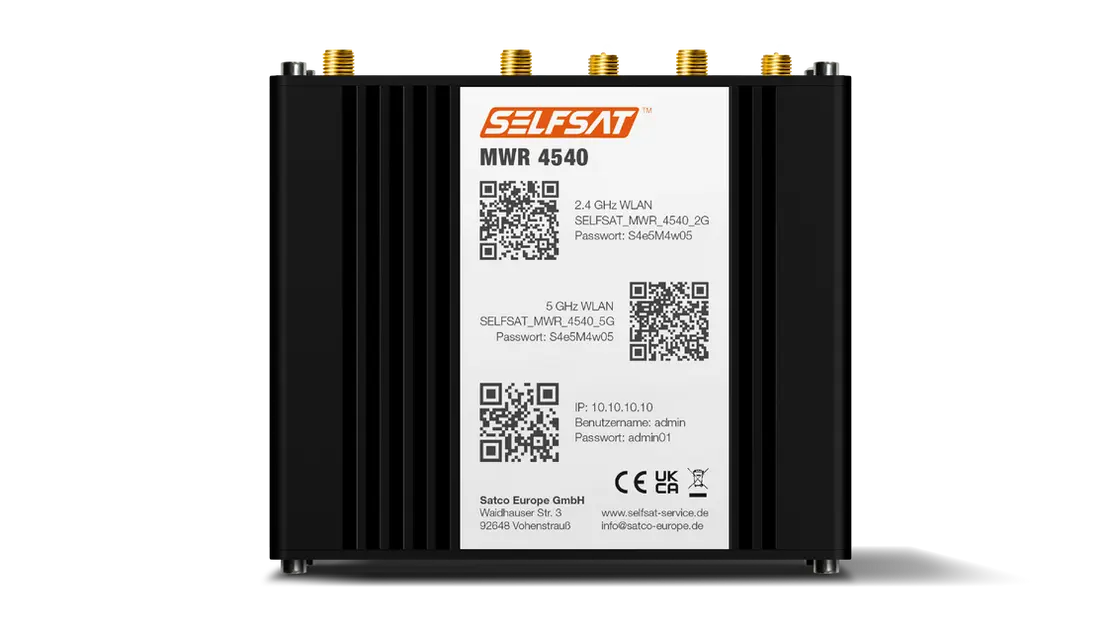

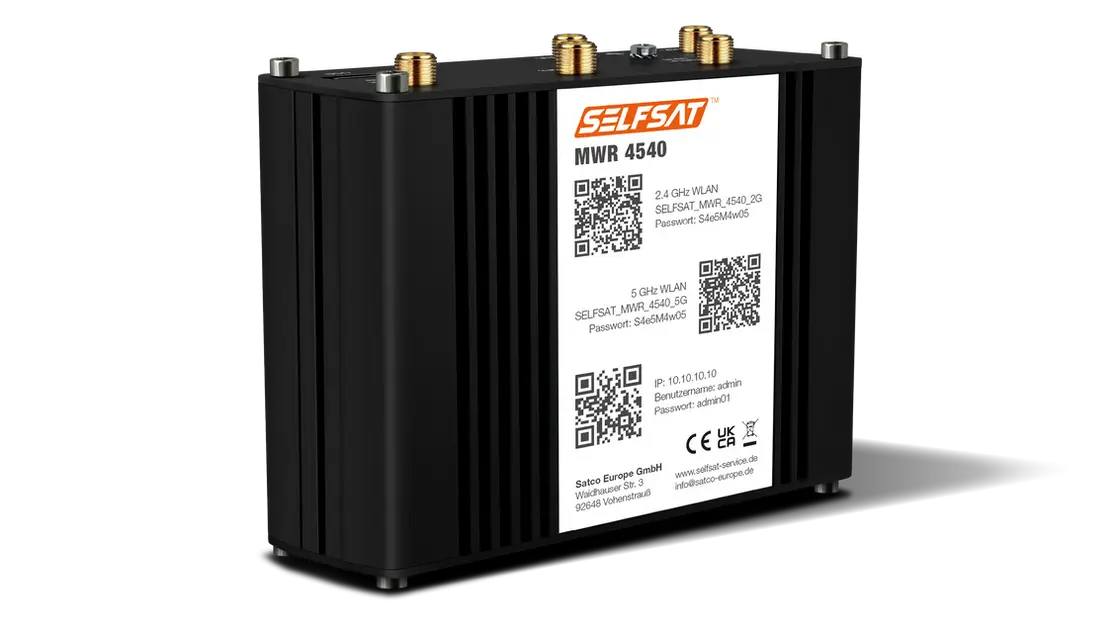

MWR 4540

4G LTE & WLAN router with up to 300 Mbps

Downloads

Supports Wi-Fi networks with a login page (captive portal)

The Fast One

A reliable internet connection in a motorhome or caravan is often a challenge – whether for a smartphone, tablet, laptop, smart TV, or game console. SELFSAT offers customized solutions for stable Wi-Fi coverage on the go.

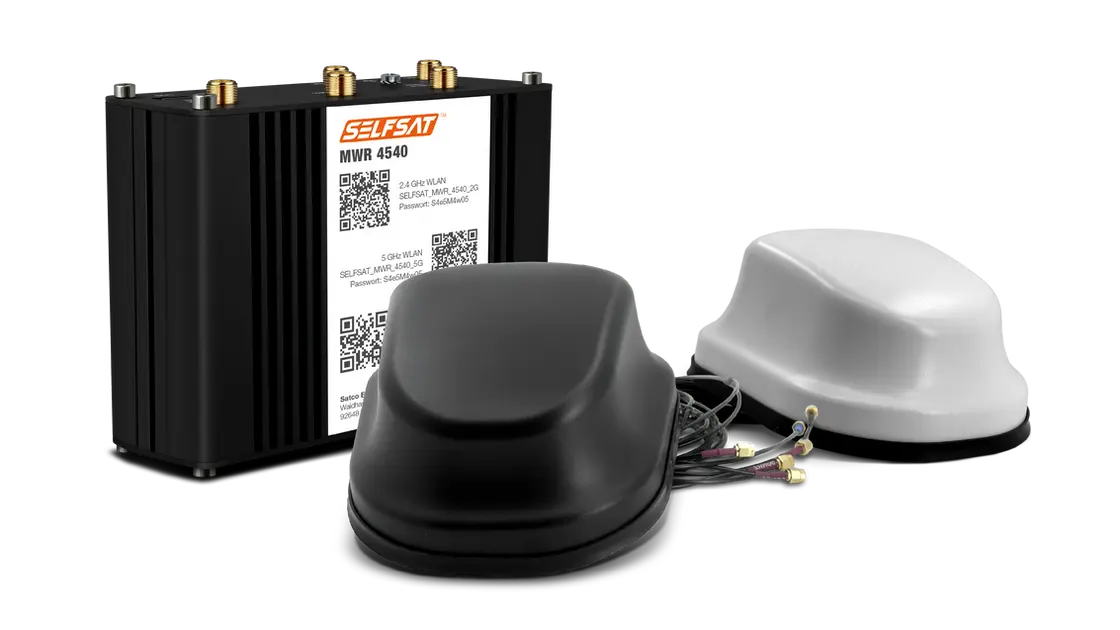

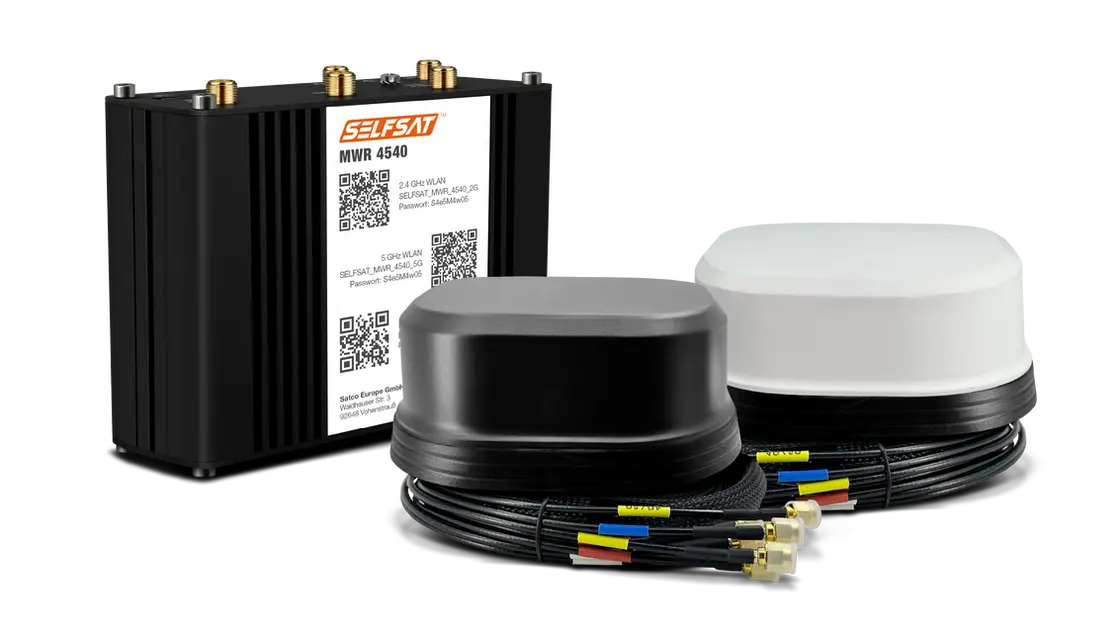

The powerful SELFSAT routers can be operated via the 12/24-volt vehicle electrical system and receive Wi-Fi or mobile signals from outside, providing them as a secure, private Wi-Fi network within the vehicle. A specially designed external antenna ensures optimal reception and bypasses the shielding of the vehicle's exterior.

Installation is straightforward, and the antenna is dust and water resistant. Connecting to the router is effortless via QR code or by entering the Wi-Fi name and password. Thanks to intuitive operation via the internet browser, no additional app is required. The router also supports logging into campsite Wi-Fi networks using captive portals, setting up VPNs for streaming abroad, and is compatible with Starlink.

  • Connection to the 4G LTE mobile network (Cat 6, up to 300 Mbps)

  • Connecting to campsite Wi-Fi with and without a login page (captive portal)

  • Connection to Starlink when connecting a Starlink antenna

  • 2 SIM card slots

  • Particularly easy setup and operation

  • GPS tracking of the motorhome or caravan possible

  • VPN-enabled, e.g. for streaming abroad

info

Technical data:

  • Supported mobile network generations: 4G LTE (up to 300 Mbps), 3G (up to 42 Mbps)

  • Supported WiFi frequencies (input): 2.4 GHz, 5 GHz

  • Supported WiFi frequencies (output): 2.4 GHz, 5 GHz

  • Supports GPS for location and time synchronization

  • 2 SIM card slots: Mini SIM (2FF)

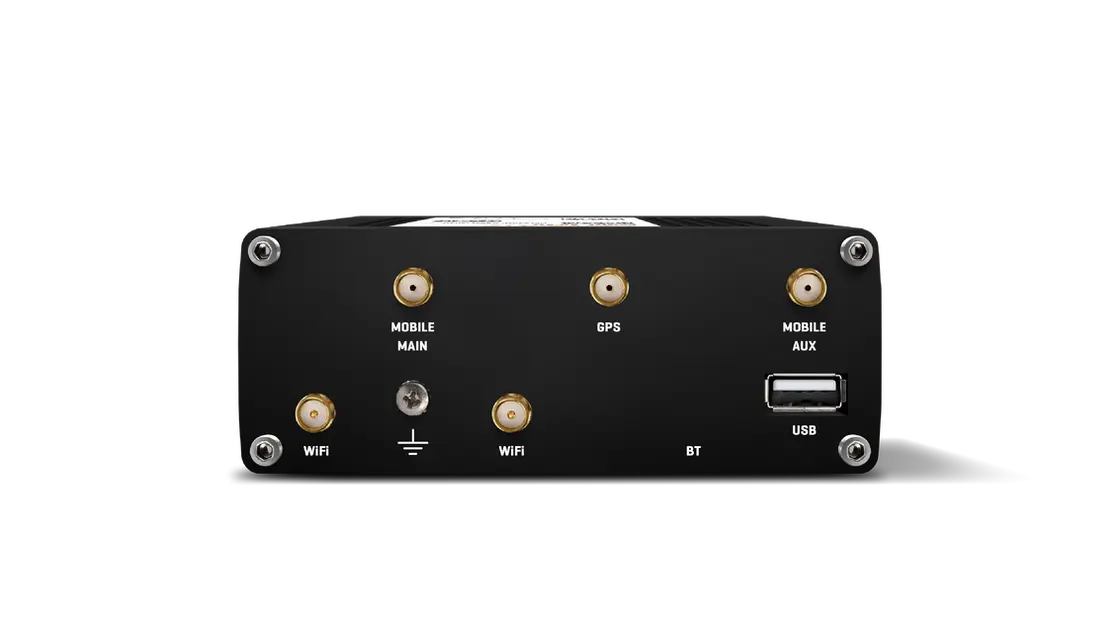

  • Ethernet interfaces: 1 x WAN, 3 x LAN RJ45

  • Power supply: 9 - 50 Volt DC

  • Dimensions: 115 x 44.2 x 95.1 mm

  • Weight: 460 g

  • Operating temperature: -40°C - 75°C

  • Protection class: IP30

Scope of delivery:

  • MWR 4540 Router

  • 4-pin power cable

  • 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM

  • outdoor antenna

  • Thread extension

  • WiFi indoor antenna

  • Router mounting kit

  • Assembly and operating instructions
