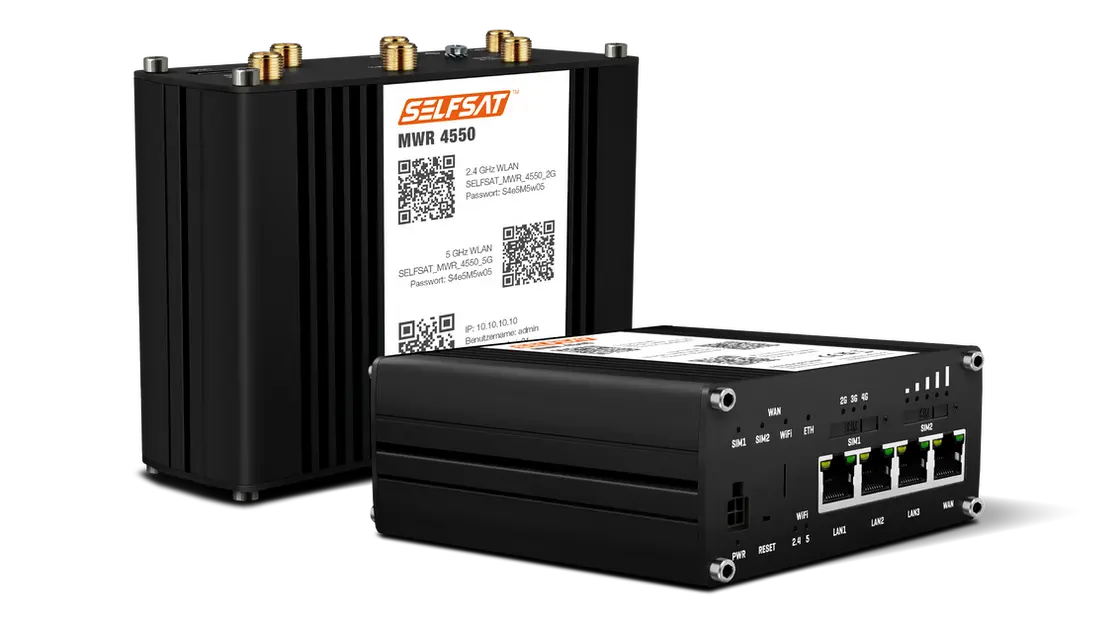

MWR 4550
4G / LTE & WLAN Internet router up to 300 Mbps
The Fast One
Supports WLAN networks with login page (captive portal)
The SELFSAT MWR 5550 is a router that can be operated via a 12 volt vehicle power supply or a 230 volt connection. It can receive an incoming WiFi signal or, thanks to an inserted SIM card, a mobile network signal and send out a private, password-protected WiFi signal. You can also connect several devices to the router at the same time. It has no SIM lock and can be used with top-up SIM cards (prepaid) or contract SIM cards (postpaid) from various providers. Since it has 2 SIM card slots, foreign SIM cards can also be used abroad, for example.
It receives a 2.4 GHz Wi-Fi signal, as well as the 5G or 4G LTE or 3G mobile network signal. Thanks to MIMO technology (Multiple In Multiple Out), it can send and receive multiple data packets simultaneously to achieve the best possible connection speed.

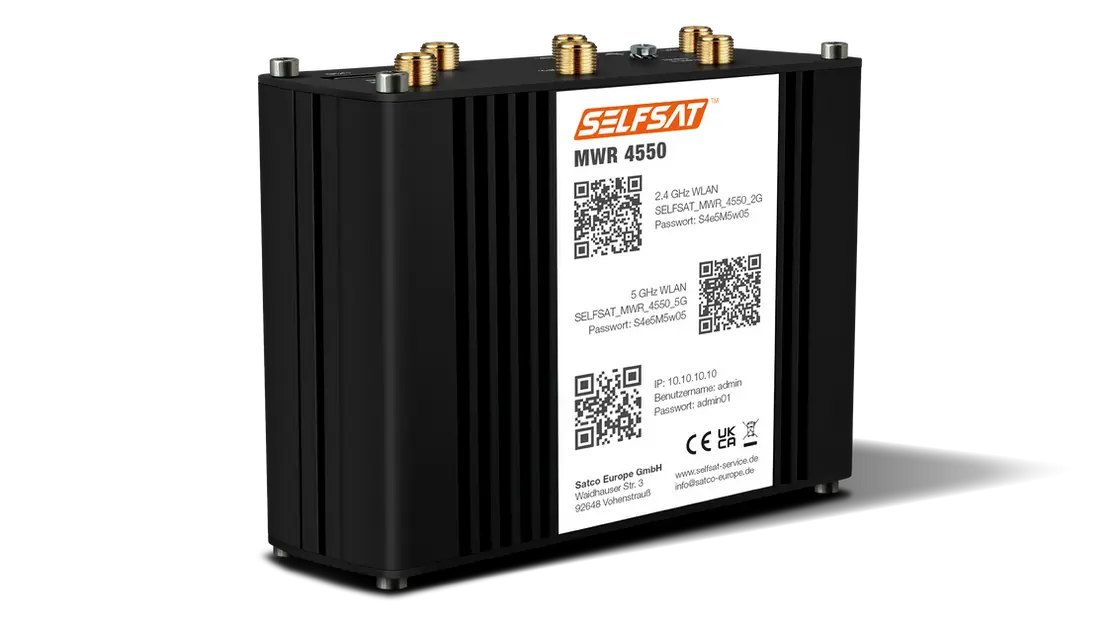

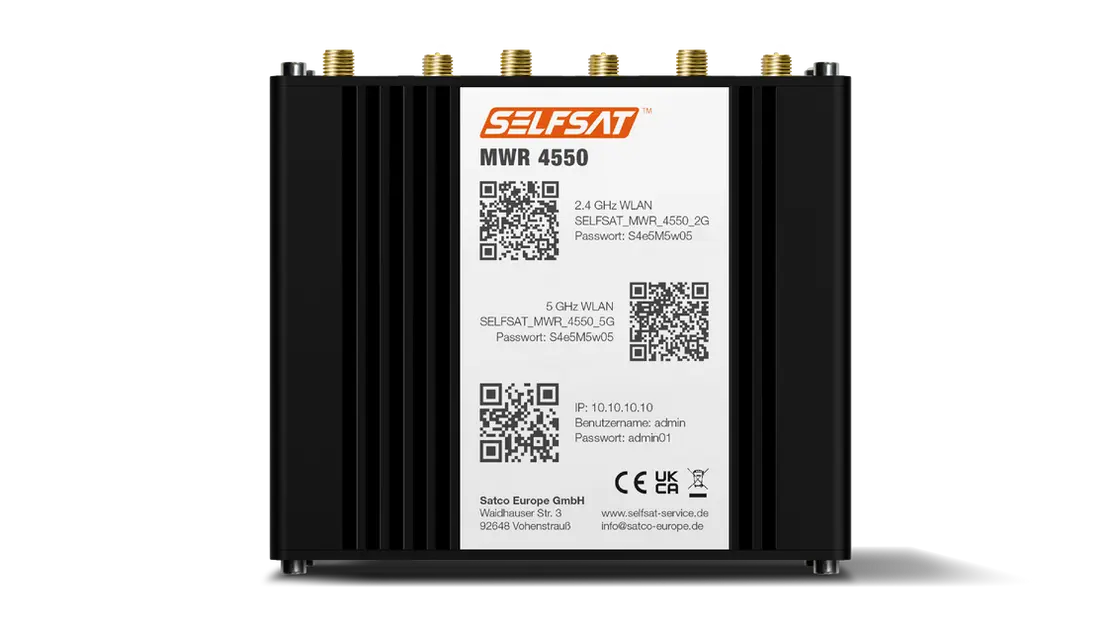

Connecting to your router's WiFi is as easy as in a hotel or at home. The first connection can be made using the QR codes on the router, or using the WiFi name and password. After changing the password, the connection is made using your specified personal password. The router's simplified, user-friendly interface can be set up and operated using Apple or Android smartphones, tablets and laptops, and is done via the Internet browser. This means that no app needs to be installed.

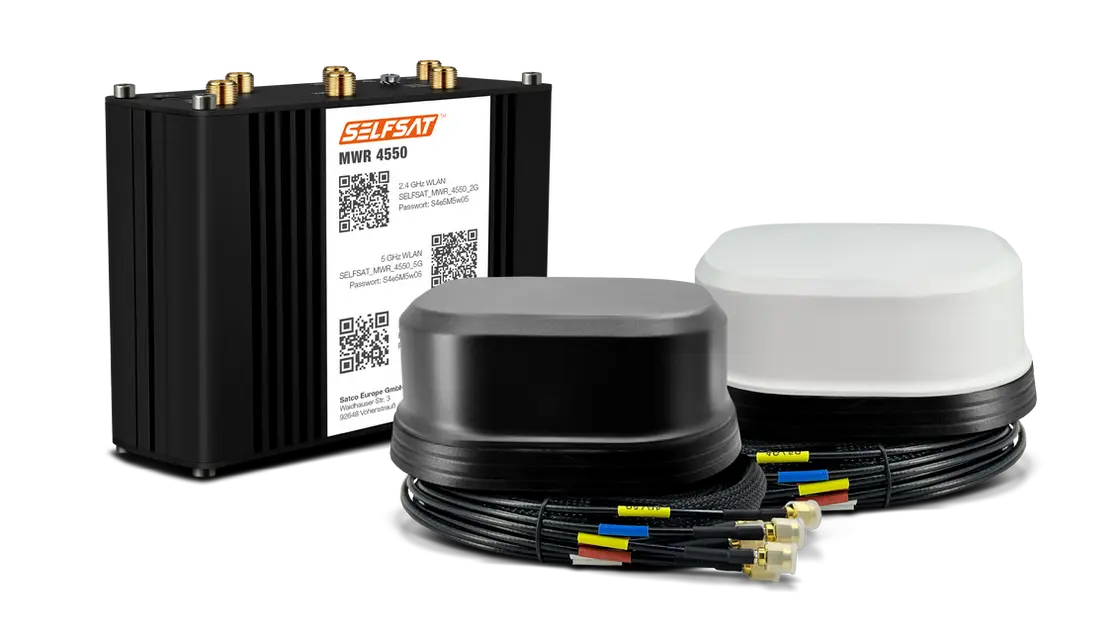

Selfsat Antenna
included in delivery
4G LTE / 5G MIMO
Frequency range 698 – 960 MHz, 1710 – 2690 MHz, 2900 – 3600 MHz
signal gain 4 dBi
LMR100 LowLoss cable
SMA connector
2.4 GHz/5 GHz
Wi-Fi
WLAN MIMO
Frequency range 2400 – 2483.5 MHz, 4900 – 5825 MHz
signal gain 4 dBi
RG174 cable
SMA connector
GPS GNSS frequency range 1561.098 – 1610 MHz
signal gain 40 +/- 2 dB
RG174 cable
SMA connector
Operating temperature -40°C – 85°C

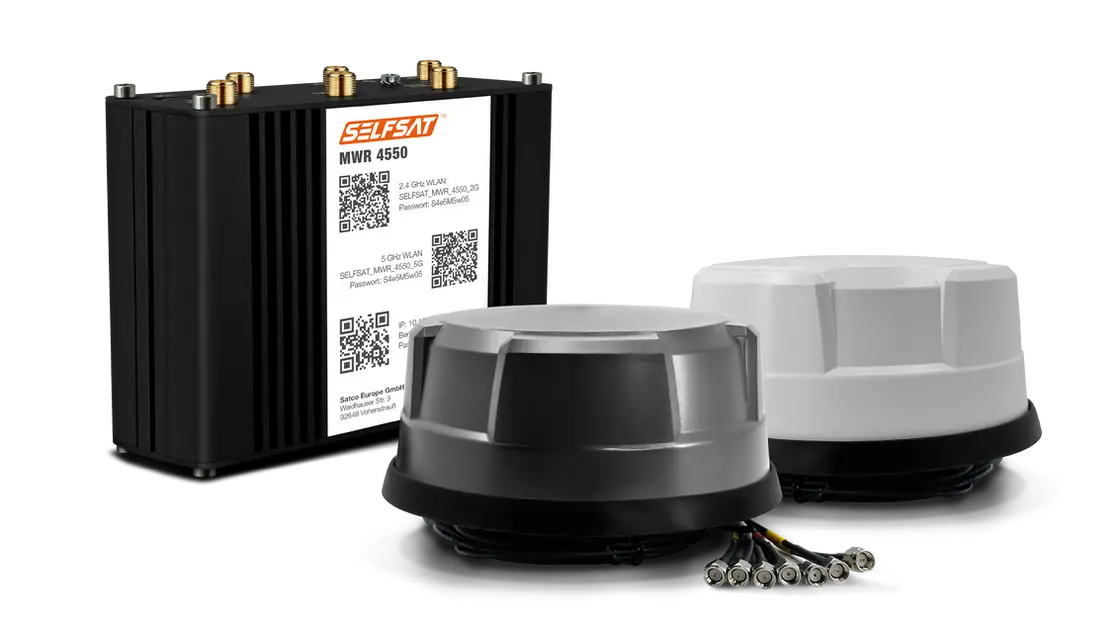

Panorama Antenna
Optional accessories
4G / LTE / 5G
MIMO frequency range: 617 - 960 MHz, 1710 - 3800 MHz, 4900 - 6000 MHz
Signal gain: 617 - 960 MHz +4 dBi; 1710 - 3800 MHz +8 dBi, 4900 - 6000 MHz +9 dBi
Cable: 4 x RG174, length 1 m (optional 1 m or 2 m cable extension available)
Connectors: SMA male
WLAN 2.4 GHz / 5 GHzSignal gain: +9 dBi
Cable: 2 x RG174, length 1 m (optional 1 m or 2 m cable extension available)
Connector: RP-SMA
GPS
Frequency range: 1,562 - 1,612 MHz
Signal gain: +26 dBi
Cable: 1 x RG174, length 1 m (optional 1 m or 2 m cable extension available)
Connection: SMA
Operating temperature: -40°C - 80°C
Protection class: IP69K (excluding cable outlet)
Dimensions: 180 x 80 mm
Downloads
info
Features:
-
Output: Long-range 2.4 GHz or more stable and faster 5.0 GHz WLAN network
-
2 SIM card slots for different mobile networks (Mini SIM 2FF format)
-
Download speed up to 300 Mbps (4G, Cat 6)
-
Supported mobile frequency 4G LTE
-
Receives 2.4 GHz & 5 GHz
-
Supports GNSS for positioning and time synchronization
-

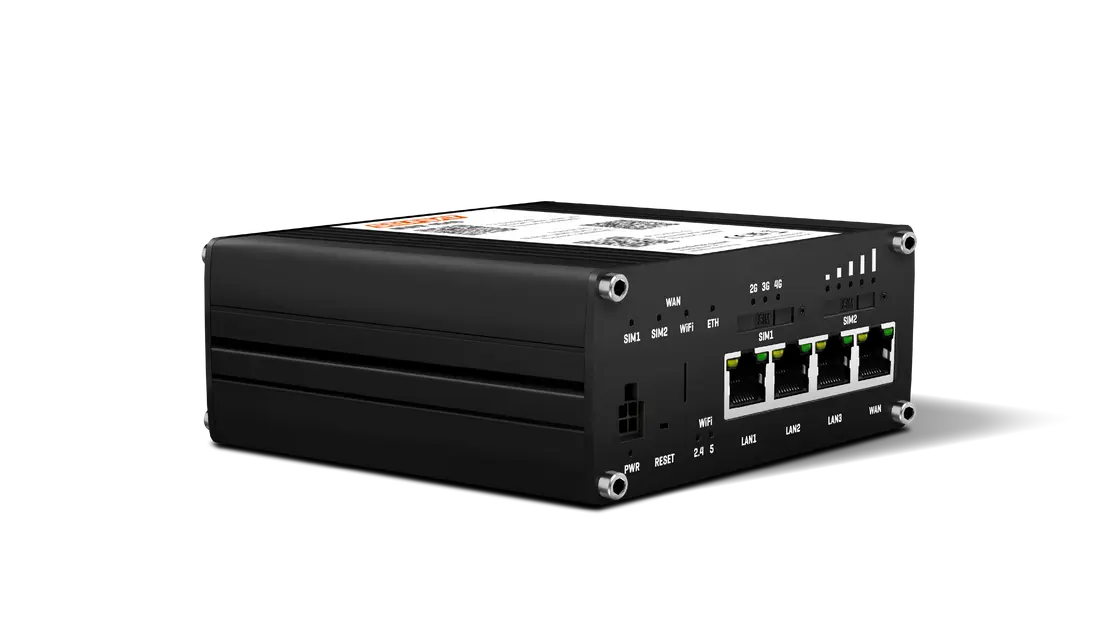

1 WAN and 3 LAN RJ45 Ethernet interfaces
-
Power supply 9 - 50 Volt DC
-
1 m antenna cable
Scope of Delivery:
-
MWR 4550 router
-
SELFSAT outdoor antenna
-
2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM
-
4-pin power cable
-
threaded extension external antenna
-
WiFi indoor antenna
-
Velcro adhesive dots for WiFi indoor antenna
-
assembly and operating instructions
