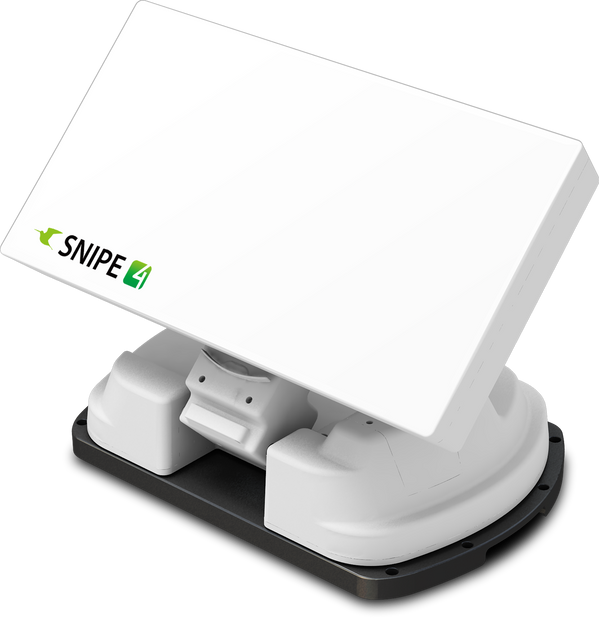

SNIPE 4

With BT remote control and iOS/Android control

Automatically controllable flat antenna with BT remote control

Also includes an iOS & Android app for control, firmware and updates

and only 1 RF cable is needed for easy installation without a controller



With the Selfsat SNIPE 4, we present the latest generation of SNIPE antennas, including a BT remote control and a comprehensive app for operating the antenna, firmware updates, device monitoring, and easy location of the target satellite via GPS.



10 satellites are pre-programmed.



Easily adjust your antenna to different positions without having to walk to the controller.

An RF cable for easy installation without a controller is included.



The housing design has been optimized and the low-band performance has been improved.



  • BT remote control with innovative OLED screen to check the antenna status:

  • Full operation via innovative BT remote control

  • OLED screen for checking the antenna status



New design:



  • Improved reception thanks to optimized antenna design

  • Improved low-band performance



A cable solution:



  • An RF cable for easy installation without a controller



Particularly durable:



  • Ultra waterproof and drainage system

  • Lightweight and rust-free thanks to reinforced plastic

  • Built-in high-voltage protection circuit to protect the system



Mobile App:



  • Antenna functions controllable via app for Android or iOS

  • Firmware Upgrade

  • Error self-diagnosis

  • Monitoring the status of the antenna

  • Easy-to-find satellite positions (GPS)



Your Selfsat antenna should be a faithful companion for many years. That's why we promise to plan our service for the long term. In the interest of the environment and sustainability, we ensure that no Selfsat antenna ends up as scrap. We keep spare parts for all models in stock and perform repairs at our Selfsat Service Center in Vohenstrauß, Bavaria.

Downloads

Information

Technical data:



  • Up to 10 pre-programmed satellites

  • Built-in high-voltage protection circuit

  • Mobile phone application support (BT)

  • Easy-to-find target satellite (GPS support)

  • Antenna dimensions (W x H x D): 515 × 355 × 201 mm

  • Remote control dimensions (W x H x D): 140 x 50 x 18 mm

  • Angle range 15° ~ 90° / 360° / -45° ~ +45°

  • Weight 10.3 kg

  • Satellite switching via DiSEqC 1.0 / 1.1

  • Satellite search time: 180 seconds (on average)

  • LNB output 2 output

  • Input frequency 10.7 ~ 12.75 GHz

  • Output frequency 950 ~ 2,150 MHz

  • LNB LO frequency 9.75 / 10.6 GHz

  • Operating temperature -30°C ~ +60°C

  • Input voltage DC 12V

  • Energy consumption 30W (in search mode)



Scope of delivery:



  • Fully automatic satellite antenna SNIPE 4 with twin LNB

  • Bluetooth remote control with OLED screen

  • Mounting plate for installation, e.g., on the roof of a motorhome.

  • Cigarette lighter cable

  • Antenna cable (grey) 7m

  • STB cable 1.5

  • IP Box

  • base cushion

  • Cable holder

  • cable gland

  • Allen key

  • Fastening screws

  • User manual

Single cable connection

Unicable Schema_Snipe EN.webp
